Introduction

The pyGLV library offers visualization examples using the ECSS.

Note

We use SDL2 and OpenGL to render the content, HLSL to create vertex and fragment shaders and the IMGUI library to add realtime UIs to our apps.

This package is the python version of glGA framework which is a lightweight, shader-based, comprehensive and easy to understand computer graphics (CG) teaching C++ system that is used for educational purposes, with emphasis on modern graphics and GPU application programming.

You can read more about the glGA here

However, this is a python version of this graphics educational framework which makes it very easy to configure it and learn the basics of low level computer graphics.

Here are some interesting features about this library:

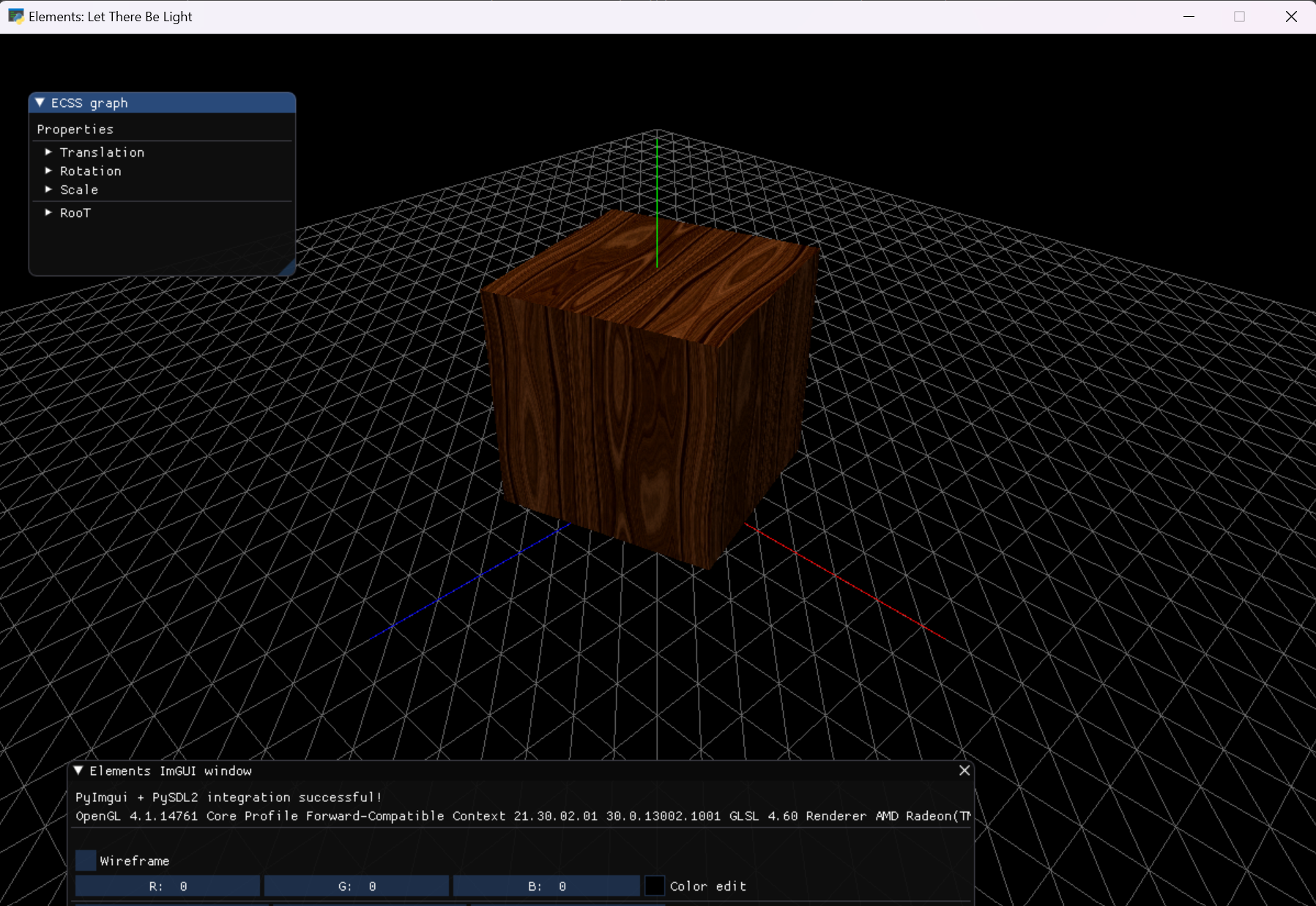

1. This library contains various examples of 3D scenes with the ECSS architecture. We advise you to run the examples and see how we can create the 3D apps from its fundamentals.

2. There is build-in 3D mesh importer. Check the example_6_import_objects.py

3. This library introduces the Scene class. A helper class that holds the reference to the 3D world and the render functionalities.

4. You are able to write your own shaders using HLSL. Those shaders are programs that run directly to your GPU.

5. We integrated the IMGUI library for easy manipulation of the 3D scenes. For example you can modify the transformation matrices of the 3D objects or modify the camera parameters.

6. Our examples implement the basic Phong lighting through shaders.

This library is great to learn the fundamentals of computer graphics!
